Rack, Luggage: Removal

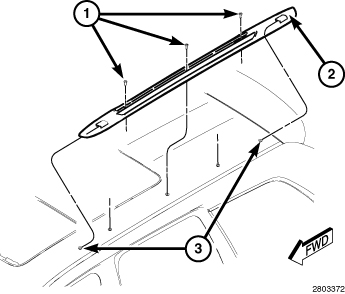

GC0146882Courtesy of CHRYSLER GROUP, LLC
  1. Remove the three center fasteners (1) that secure the roof rack side rail (2) to the vehicle.
  2. Slide the side rail rearward to separate the side rail from the front and rear riv-nuts (3).
  3. Remove luggage rack side rail from the vehicle.
