Glass, Sunroof, Rear: Adjustments

  1. Open the sunshade fully.
  2. Verify the sunroof glass panel is in the fully closed position.

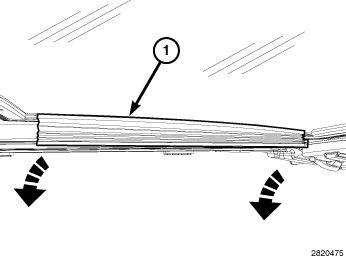

    GC0144339Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the top of the mechanism covers (1) from the front glass panel and slide rearward to access attachment screws.

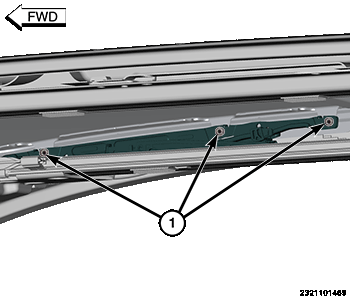

    GC0174056Courtesy of CHRYSLER GROUP, LLC
  4. Loosen but do not remove all six front glass panel attachment screws (1) (three per side).

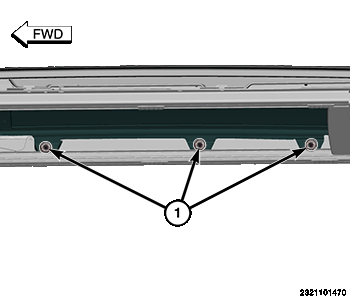

    GC0174073Courtesy of CHRYSLER GROUP, LLC
  5. Loosen but do not remove all six rear glass panel attachment screws (1) (three per side).
    GC0174074Courtesy of CHRYSLER GROUP, LLC
  6. Insert (special tool #2022300230, Gauges, Clearance Measurement, Non-Metallic)4 mm  plastic feeler gauges (1) between the interface of the front and rear glass panels at two locations (position outboard on both LH and RH sides). Be careful not to damage sunroof seal or glass encapsulation surface while inserting feeler gauges.
    GC0174048Courtesy of CHRYSLER GROUP, LLC
  7. Standing outside car and reaching into interior to support glass panel by hand from bottom surface adjust the flushness of the front glass panel surface along the FRONT to be within flush to 2.5 mm under flush relative to the roof surface.
  8. With assistance of a helper seated in the interior tighten only the furthest forward sunroof glass panel attachment screw (one per side) to the proper. Refer to TECHNICAL SPECIFICATIONS .
  9. Adjust the flushness of front glass panel surface at the REAR corners (1) to be within flush to 2.5 mm (0.1 in) over flush relative to the roof surface.
    GC0174074Courtesy of CHRYSLER GROUP, LLC
  10. Tighten all four remaining front sunroof glass panel attachment screws to the proper. Refer to TECHNICAL SPECIFICATIONS .
  11. Adjust the flushness of the rear glass panel surface to be within flush to 2.5mm under flush relative to front glass panel surface.

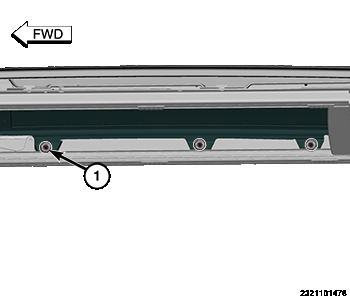

    GC0174059Courtesy of CHRYSLER GROUP, LLC
  12. Tighten only the furthest forward sunroof glass panel attachment screw (1) (one per side) to the proper. Refer to TECHNICAL SPECIFICATIONS .
    GC0174068Courtesy of CHRYSLER GROUP, LLC
  13. Adjust the flushness of rear glass panel surface along the REAR to be within flush to 2.5mm over flush relative to the roof surface.

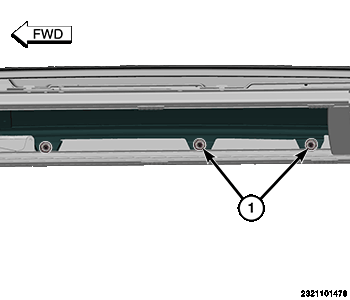

    GC0174054Courtesy of CHRYSLER GROUP, LLC
  14. Tighten all four remaining rear sunroof glass panel attachment screws (1) to the proper. Refer to TECHNICAL SPECIFICATIONS .
  15. Remove the feeler gauges between glass panels.
  16. Check for proper fit. If not OK, repeat glass panel adjustment.
  17. Connect mechanism covers to front glass panel.
  18. Verify sunroof glass operation.
