Cover, Seat Cushion, Rear: Removal

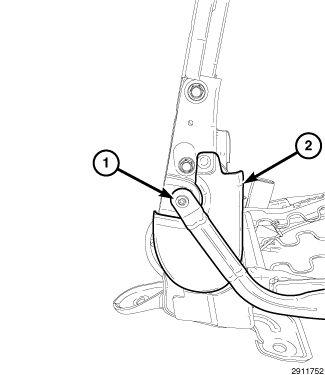

GC0145773Courtesy of CHRYSLER GROUP, LLC
NOTE:

40% seat cushion shown, 60% seat cushion similar.

  1. Remove the rear seat. Refer to SEAT, FRONT, REMOVAL .
  2. Remove the side cover (2).
  3. Disconnect the electrical connectors, if equipped.
  4. Remove the seat back pivot bolts (1).

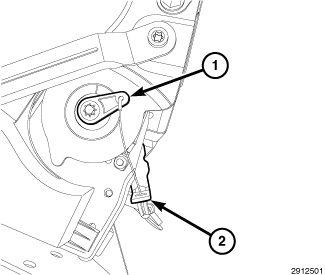

    GC0145784Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the cable (1) and separate the housing from the seat back frame (2).
  6. Remove the seat cushion assembly from the seat back frame assembly.

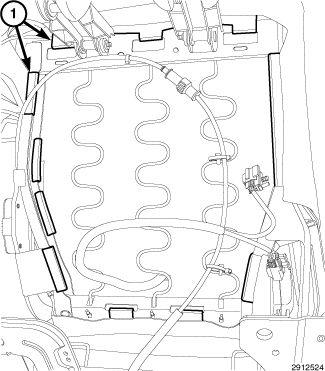

    GC0145785Courtesy of CHRYSLER GROUP, LLC
  7. Release the J-straps (1).
    GC0145768Courtesy of CHRYSLER GROUP, LLC
  8. Open the cover (1) and expose the strip fasteners (2).
  9. While pulling down on the seat cushion foam (3), slide the strip fasteners (2) out of the foam and release.
