Bin, Instrument Panel: Removal

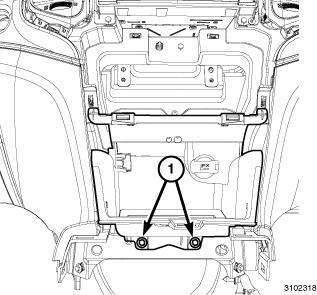

GC0146511Courtesy of CHRYSLER GROUP, LLC
  1. Remove the center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
  2. Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL .
  3. Remove the lower screws (1).
    GC0146512Courtesy of CHRYSLER GROUP, LLC
  4. Remove the upper screw (1).
  5. Disconnect the electrical connectors (2).

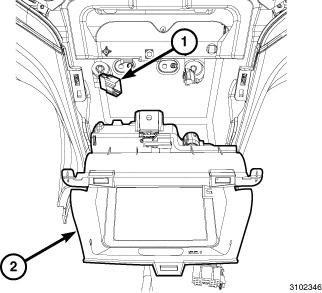

    GC0146513Courtesy of CHRYSLER GROUP, LLC
  6. Remove the storage bin (2) and separate the connectors (1), if equipped.
