Bezel, Instrument Cluster: Installation

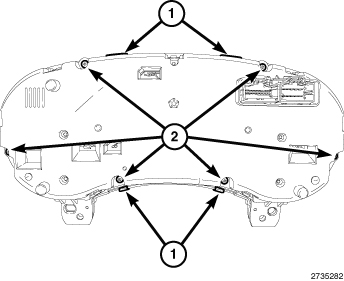

GC0145885Courtesy of CHRYSLER GROUP, LLC
  1. Align the cluster bezel over the face of the instrument cluster.
  2. Press firmly and evenly on the bezel until each of the latches (1) at the top and bottom of the instrument cluster are fully engaged.
  3. Install the fasteners (2) that secure the bezel to the instrument cluster assembly.
