Switch, Terrain Select: Removal

Courtesy of CHRYSLER GROUP, LLC

Using trim stick (special tool #C-4755, Trim Stick) (1) or equivalent, separate the retaining ring (3) from the knob (2) and slide down the shifter shaft.

Courtesy of CHRYSLER GROUP, LLC
Remove the yellow stamped spring clip (2) from the knob (1) by grabbing the exposed tab with pliers and pulling straight out.
Pull the knob (2) off of the shift shaft.

Courtesy of CHRYSLER GROUP, LLC

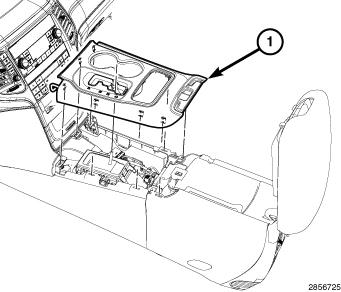

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the clip fasteners and separate the console bezel.

Courtesy of CHRYSLER GROUP, LLC

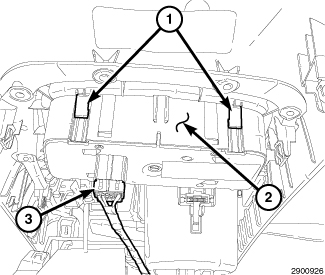

With the bezel tilted up in the back, disconnect the wiring harness connector (3), then press the four retaining clips (1) in and push the terrain select switch (2) up through the bezel to remove.
