Sunshade, Sunroof: Removal

  1. Remove sunroof glass, Refer to GLASS, SUNROOF, REMOVAL .
  2. Cycle sunroof motor to the vent position.
  3. Move sunshade towards the closed position stopping three to four inches from the closed position.
  4. Press the sunshade in the cross car direction on one side of the sunshade by applying a side-load to the shade while pulling up at the front centerline of the sunshade. This will cause one foot to pop out of the track.

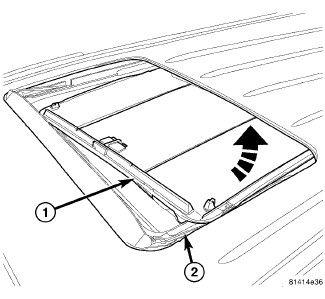

    GC0105332Courtesy of CHRYSLER GROUP, LLC
  5. Remove the other front foot by rotating the shade (1) out and resting the foot on the top of the sunroof frame (2).
    NOTE:

    Gently tilt sunshade in such that it slides below the water channel.

  6. Pull the shade farther forward in the vehicle and repeat the previous step to remove the rear feet.
  7. Remove the sunshade (1).
