Cable, Release: Removal
- Move the rear seat to the folded forward position.NOTE:

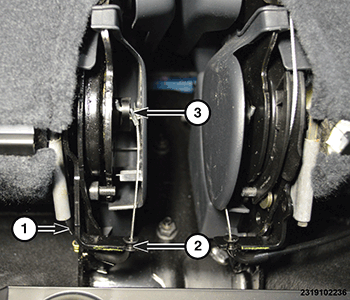

Take note of the cable routing (1), for proper installation.
- Unclip the cable from the seat bracket (2).
- Remove the cable end (3) from the release mechanism.

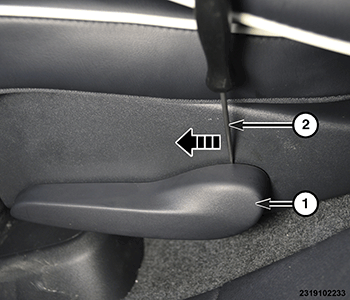

- Using a small hook tool (2), hook the handle clip and pull the toll forward to release it. Pull the handle (1) from the seat while pulling the hook tool forward.

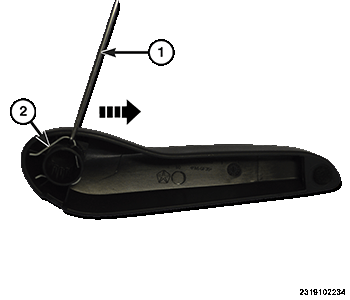

- This shows the backside of the handle. Using a hook tool (1) to pull the clip (2) forward.

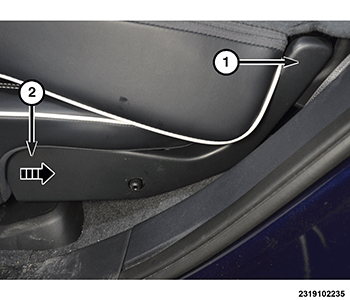

- Starting at the rear of the side cover (1), pull out to release it then slide it rearward off the hook at the front (2).

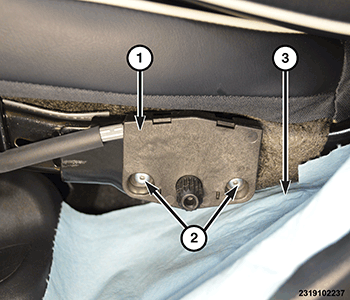

- Lay a shop towel (3) under the release cable (1) to catch any metal shavings.NOTE:
Measure the NEW rivets supplied with the repair kit, make sure to use the correct drill size.
- Drill out the rivets (2) and remove the release cable from the seat.
- Remove any rivet remains from the seat frame.
- Unclip the cable from the seat frame, cut any zip-ties and remove.
