Fender, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

Using a grease pencil, mark the location of the fender.
Remove wheel and tire assembly if necessary.

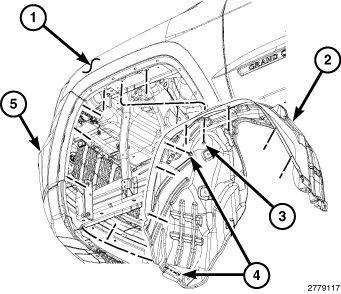

Remove wheel liner as needed (2). Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove front fascia assembly. Refer to FASCIA, FRONT, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

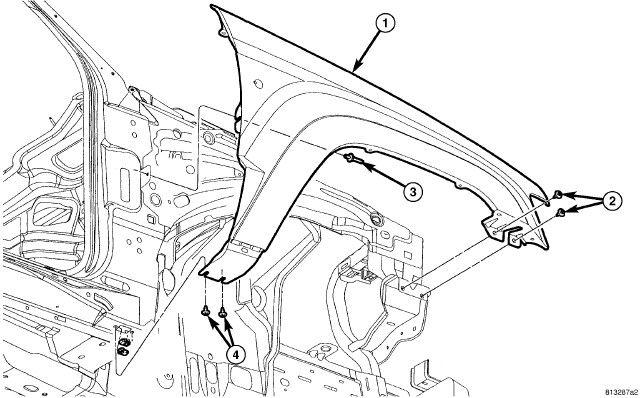

Remove front lower fasteners (2) and the fascia side retainer.
Raise and support the vehicle.
Remove the lower rocker sill cladding as needed. Refer to CLADDING, BODY, SILL, REMOVAL .
Remove rear lower fasteners (4).
Remove the rear fastener (3) located in the door jam opening.

Courtesy of CHRYSLER GROUP, LLC

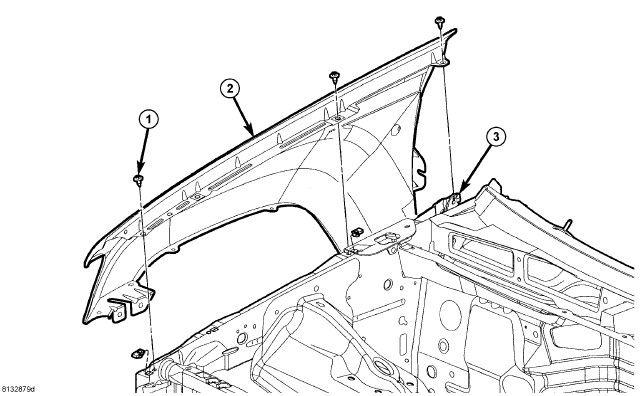

Remove upper fender fasteners (1).
Remove fender (2) from vehicle.
