Reservoir, Coolant: Removal

  1. Drain the low temperature cooling system below level of the coolant reservoir. Refer to STANDARD PROCEDURE .

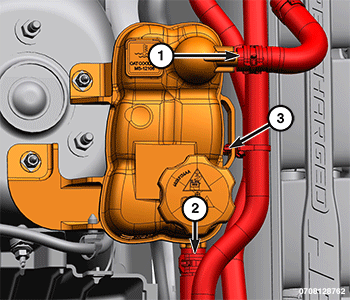

    GC0180931Courtesy of CHRYSLER GROUP, LLC
  2. Remove the inlet hose (1) from the coolant reservoir.
  3. Remove the outlet hose (2) from the coolant reservoir.
  4. Remove the coolant hose retainer (3).

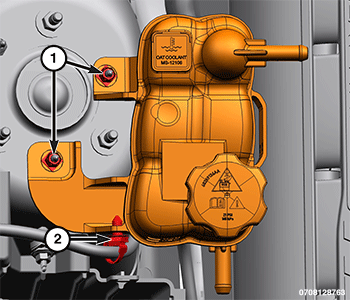

    GC0180907Courtesy of CHRYSLER GROUP, LLC
  5. Remove the wire harness retainer (2) from the coolant reservoir.
  6. Remove the bolts hose (1) and the coolant reservoir.
