Valve, Coolant Control: Installation
WARNING: This page is about a different variant/trim than selected.

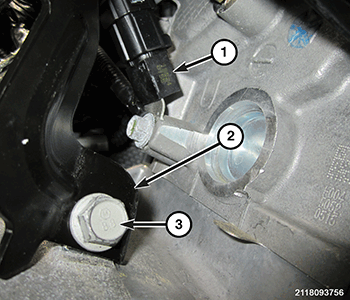

- Install the coolant control valve and bracket assembly (2) tighten the bolt (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

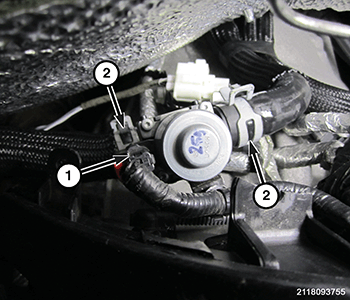

- Install the coolant lines (2) to the coolant control valve.
- Connect the coolant control valve wire harness connector (1).
- Install the cowl extension silencer. Refer to SILENCER, COWL EXTENSION, INSTALLATION .
- Fill the coolant system. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
