Valve Body: Operation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES. Failure to follow these instructions may result in damage to the TCM/TCMA.
The TCM will actuate the valves via solenoids based on the position of the shifter, transmission fluid temperature, engine operating conditions, traction conditions, and driver demands. During a shift, the TCM will actuate the solenoids to match the gear ranges to the optimal torque range of the engine based on the position of the accelerator pedal, shifter, and vehicle speed as determined by the PCM based on input from the Vehicle Speed Sensor (VSS) and ABS module.

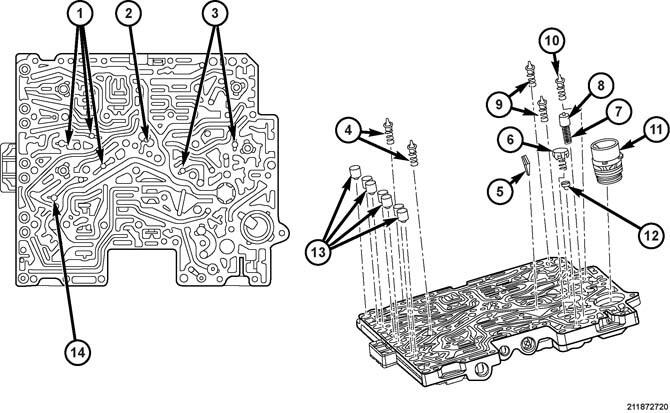

 Courtesy of CHRYSLER GROUP, LLC
|
| 1. Check ball |
2. Rocker ball |
| 3. Check ball |
4. Valves |
| 5. Filter |
6. Valve |
| 7. Pressure spring |
8. Piston |
| 9. Valves |
10. Valve |
| 11. Adapter |
12. Screen |
| 13. Pistons |
14. Check ball |

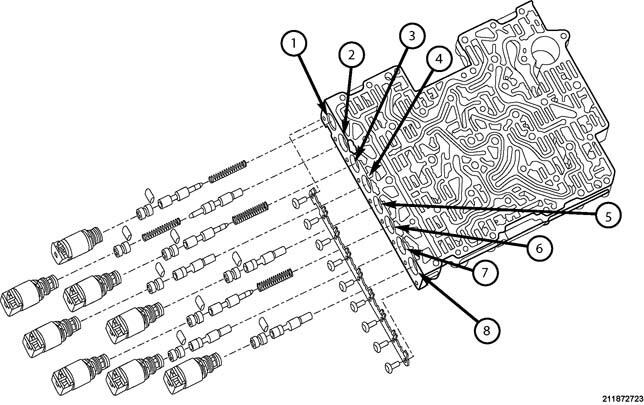

 Courtesy of CHRYSLER GROUP, LLC
|
| 1. Priming valve |
2. Park pawl release valve |
| 3. Holding valve - C clutch |
4. Clutch valve - C clutch |
| 5. Clutch valve - E clutch |
6. Holding valve - E clutch |
| 7. Clutch valve - D clutch |
8. Clutch valve - A clutch |

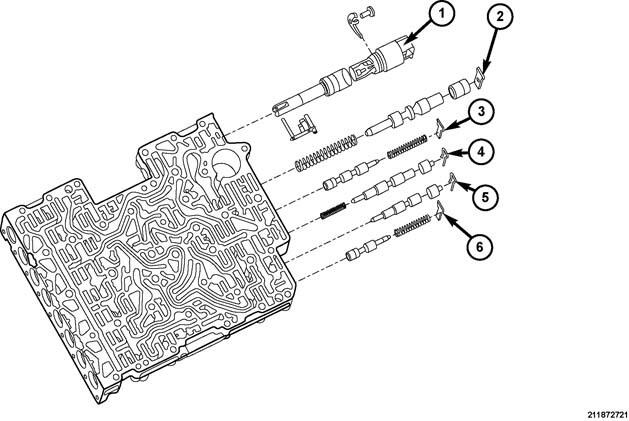

 Courtesy of CHRYSLER GROUP, LLC
|
| 1. Parking pawl release piston |
2. Line pressure valve |
| 3. Switching valve - torque converter |
4. Torque converter clutch valve |
| 5. Clutch valve - B clutch apply |
6. Holding valve - B clutch apply |

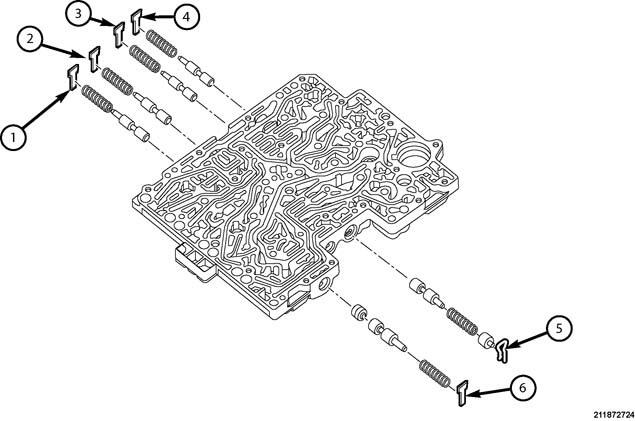

 Courtesy of CHRYSLER GROUP, LLC
|
| 1. Holding valve - D clutch |
2. Holding valve - A clutch |
| 3. Clutch valve B clutch NIC |
4. Holding valve - B clutch release |
| 5. Torque converter pressure valve |
6. Position valve |
