Output Shaft Seal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

The seal must be installed flush with the case. Driving the seal deeper could damage the seal causing a leak.

  1. Position the new transmission output shaft seal over the transmission output shaft and against the transmission case.
  2. Using (special tool #9677, Installer, Seal) install the transmission output shaft seal.
  3. Verify that the transmission is in PARK,
    GC0169779Courtesy of CHRYSLER GROUP, LLC
  4. Install the transmission output shaft flange (1) onto the transmission output shaft and install a NEW  transmission output flange nut (2). Tighten the transmission output flange nut, with a 34 mm 12 point socket, to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  5. Stake (3) the transmission output flange nut.
  6. Position the drive shaft in place on the transmission output flange.

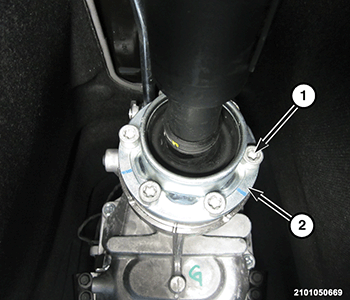

    GC0170214Courtesy of CHRYSLER GROUP, LLC
  7. Install the drive shaft washers (2) and bolts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  8. Check the transmission fluid level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
