Valve Body: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:

The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES. Failure to follow these instructions may result in damage to the TCM/TCMA.

GC0152241Courtesy of CHRYSLER GROUP, LLC
  1. Install the fluid port (1) with NEW  O-rings (2) and seal (3) to the valve body.
    GC0162906Courtesy of CHRYSLER GROUP, LLC

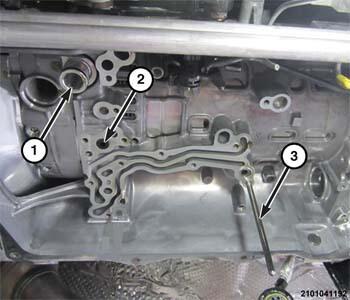

  2. Install one of the valve body (special tool #10379, Pins, Valve Body Alignment) (3) in the rear of the transmission as shown in the illustration as a guide.
    NOTE:

    Make sure the speed sensor at the rear of the valve body does get caught between the valve body and the transmission case when positioning the valve body to the case.

  3. Carefully guide the front of the valve body over the cradle while aligning the rear of the valve body with the alignment pin.
    GC0162910Courtesy of CHRYSLER GROUP, LLC
  4. Install the front alignment pin (1).
  5. Use an appropriate tool on one of the alignment pins to assist in holding the valve body in position while installing the remaining fasteners.
    GC0169780Courtesy of CHRYSLER GROUP, LLC
  6. Install the valve body assembly retaining bolts not including 16-18 and hand tighten.
  7. Remove the pins and install the remaining bolts.
    GC0152117Courtesy of CHRYSLER GROUP, LLC
  8. Using (special tool #10377, Remover/Installer, Guide Sleeve) (1) carefully install the electrical harness insulator (2) to the transmission case (3).
    GC0152103Courtesy of CHRYSLER GROUP, LLC
  9. Lock the electrical connector lock (2) to the internal harness end.
  10. Install the rear valve body retaining bolts (1, 2) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0175210Courtesy of CHRYSLER GROUP, LLC
  11. When installing the OSS into the case, take care to position the OSS guide pin as shown in the illustration or DAMAGE  to the sensor may result. This is the INCORRECT  alignment of the pin.
    GC0175216Courtesy of CHRYSLER GROUP, LLC
  12. This is the CORRECT  installation and pin alignment.
    G00381295Courtesy of CHRYSLER GROUP, LLC

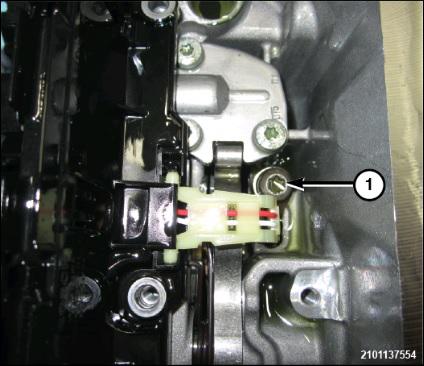

  13. Install the speed sensor (4) to the case install the retaining bolt (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0154626Courtesy of CHRYSLER GROUP, LLC
  14. If equipped, install the Hydraulic Impulse Oil Storage (H.I.S.) accumulator (1).
  15. Tighten the bolts (2 and 3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  16. Connect the H.I.S. electrical connector.
  17. Install the valve body assembly end retainer bolts (3) and hand tighten.
    Fig 1: Valve Body Bolts Loosening And Tightening Sequence
    GC0169780Courtesy of CHRYSLER GROUP, LLC
  18. Tighten the valve body fasteners to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0158349Courtesy of CHRYSLER GROUP, LLC
  19. Lower the transmission back onto the crossmember.
  20. Install the rear mount nuts (2) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0158366Courtesy of CHRYSLER GROUP, LLC
  21. Remove the tie strap (3).
  22. Attach the Manual Park Release (MPR) cable (1) to the MPR lever (2).
    Fig 2: Oil Pan Retaining Bolts Tightening Sequence
    GC0152239Courtesy of CHRYSLER GROUP, LLC
  23. Install the oil pan and gasket.
  24. Install the thirteen oil pan retaining bolts and tighten the fasteners to the proper torque specifications using the sequence given. Refer to TORQUE SPECIFICATIONS .
    GC0152193Courtesy of CHRYSLER GROUP, LLC
  25. Connect the plug connector (1).
    GC0152192Courtesy of CHRYSLER GROUP, LLC

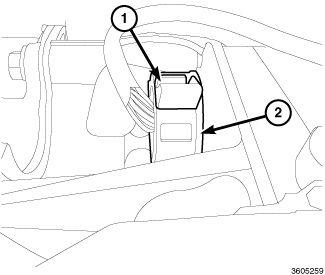

  26. Turn the locking mechanism (1) of the harness plug clockwise and lock in place.
  27. If the valve body is replaced, program the TCM. Refer to MODULE, TRANSMISSION CONTROL (TCM), MODULE PROGRAMMING .
  28. Perform the TRANSMISSION FILL AFTER SERVICE procedure. Refer to STANDARD PROCEDURE .
  29. Perform the TRANSMISSION VERIFICATION TEST. Refer to TRANSMISSION VERIFICATION TEST .
