Torque Converter: Description: Turbine
WARNING: This page is about a different variant/trim than selected.

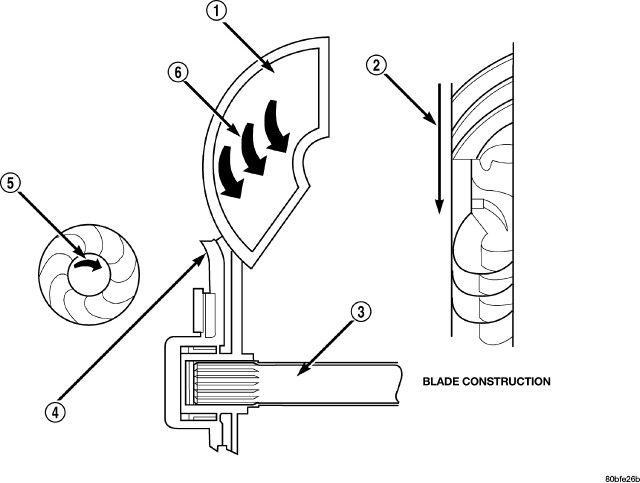

| 1 - TURBINE VANE |
| 2 - ENGINE ROTATION |
| 3 - INPUT SHAFT |
| 4 - PORTION OF TORQUE CONVERTER COVER |
| 5 - ENGINE ROTATION |
| 6 - OIL FLOW WITHIN TURBINE SECTION |
The turbine (1) is the output, or driven, member of the converter. The turbine is mounted within the housing opposite the impeller, but is not attached to the housing. The input shaft is inserted through the center of the impeller and splined into the turbine. The design of the turbine is similar to the impeller, except the blades of the turbine are curved in the opposite direction.
