Engage Manual Park Release (MPR)

WARNING: This page is about a different variant/trim than selected.
WARNING:

Always secure your vehicle by fully applying the parking brake, before activating the Manual Park Release. Activating the Manual Park Release will allow your vehicle to roll away if it is not secured by the parking brake or by proper connection to a tow vehicle. Activating the Manual Park Release on an unsecured vehicle could lead to serious injury or death for those in or around the vehicle.

  1. Pull the tether upward and push the lock tab (1) with a small screw driver or similar to release the lever (2).
  2. Allow the lever to seat into position. Verify the lever is locked in position.
    GC0158364Courtesy of CHRYSLER GROUP, LLC
  3. Install the Mechanical Park Release trim cover (2).
  4. Verify that the transmission is in park.

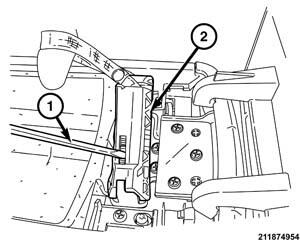

GC0158336Courtesy of CHRYSLER GROUP, LLC
