Seal, Torque Converter Hub: Removal

WARNING: This page is about a different variant/trim than selected.

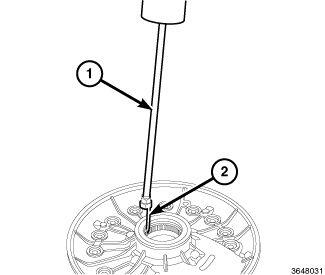

GC0152247Courtesy of CHRYSLER GROUP, LLC
  1. Remove the torque converter. Refer to TORQUE CONVERTER, REMOVAL .
  2. Using (special tool #9667, Remover, Seal) and (special tool #C-3752, Slide Hammers) remove the torque converter hub seal.
