Rear Wheel Drive

WARNING: This page is about a different variant/trim than selected.

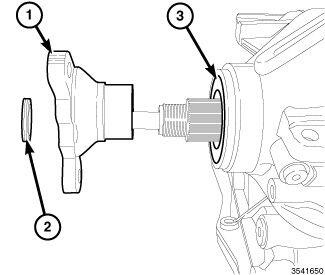

GC0152116Courtesy of CHRYSLER GROUP, LLC
NOTE:

Mark the propeller to transmission output flange for assembly reference.

  1. Remove the propeller shaft from the transmission output flange. Move propeller shaft to the right and tie up.
  2. Using a suitable punch, remove the staking from the nut.
  3. Remove the propeller shaft flange nut about using a 34 mm 12 point socket (3) and (special tool #C-3281, Holder, Flange) (2) to hold the flange (1).
  4. Remove the flange (1), and flange dust seal (2).
  5. Remove the output shaft seal (3) with suitable screw and slide hammer.
