Pump, Transmission Oil: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the oil supply from the transmission case. Refer to PUMP, TRANSMISSION OIL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Apply air pressure slowly, oil may spray when B-piston releases from the assembly.

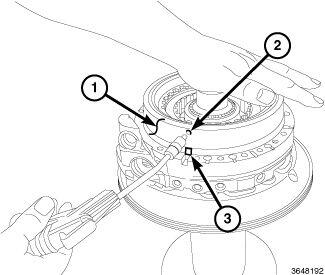

With one hand above B-piston (1), carefully apply air pressure into the hole directly above the B-piston alignment tab (3) to remove B-piston (2) from the assembly.

Courtesy of CHRYSLER GROUP, LLC

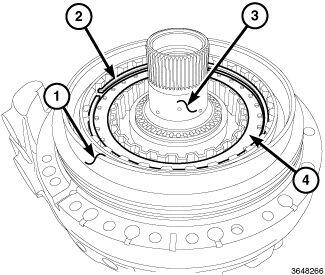

Remove the outer ring (1) (inside B-piston).
Remove the snap ring (2).
Remove the clutches and spacers (4).
Remove the hub (3).

Courtesy of CHRYSLER GROUP, LLC

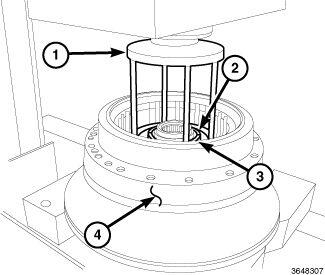

Position the oil pump housing assembly (4) in a suitable press.
Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston retainer to remove tension on the split retaining ring (2), and remove the two halves of the retaining ring (2).

Courtesy of CHRYSLER GROUP, LLC

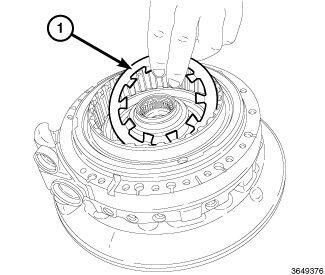

Remove the piston retainer and plate.

Courtesy of CHRYSLER GROUP, LLC
Remove the A-piston (1) and seal (2) from the oil pump.

Courtesy of CHRYSLER GROUP, LLC

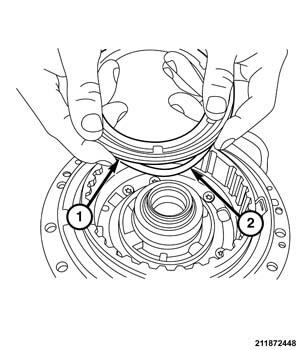

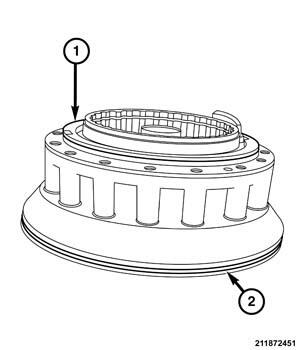

Remove the inner (1) and outer (2) oil pump O-rings.

Courtesy of CHRYSLER GROUP, LLC

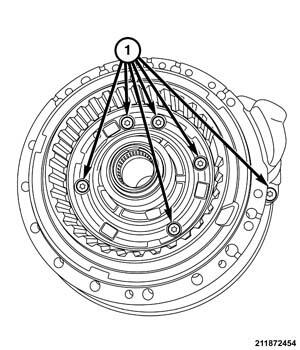

Remove the six Torx® bolts (1) from the oil pump.

Courtesy of CHRYSLER GROUP, LLC

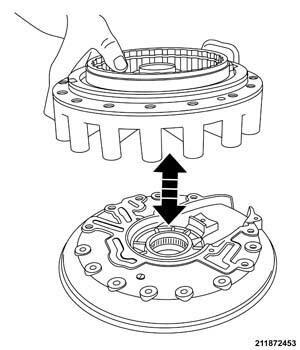

Separate the two halves of the oil pump, by pushing on the hub.

Courtesy of CHRYSLER GROUP, LLC

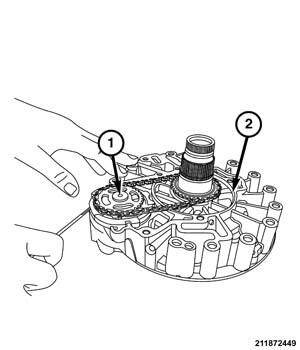

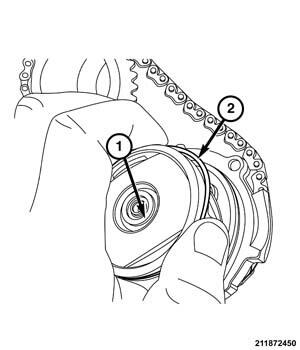

Carefully pry up on the oil pump (1), separating it from the housing (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the oil pump O-ring (2).

Courtesy of CHRYSLER GROUP, LLC

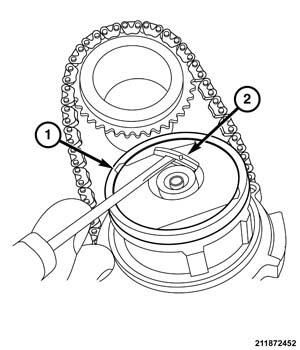

Remove the oil pump seal (2).
