Clutch E Assembly

WARNING: This page is about a different variant/trim than selected.

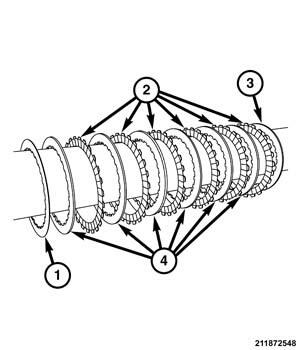

GC0154469Courtesy of CHRYSLER GROUP, LLC
1. Wave plate
2. Friction plate
3. Backing plate
4. Steel plate
NOTE:

If clutch discs are being replaced, soak in 8HP trans fluid before assembly.

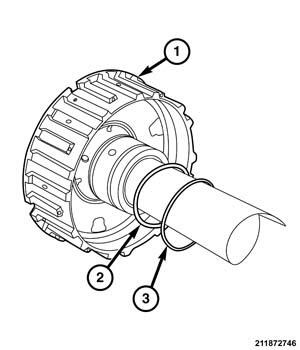

  1. Install the E-clutch (1) seal (2) and O-ring (3).
    GC0154602Courtesy of CHRYSLER GROUP, LLC

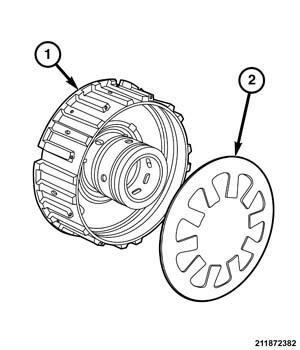

  2. Install the belleville (2) spring into the E-clutch hub (1).
    GC0154394Courtesy of CHRYSLER GROUP, LLC

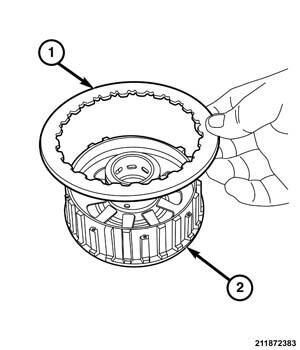

  3. Install the clutch pack thrust plate (1).
    GC0154363Courtesy of CHRYSLER GROUP, LLC

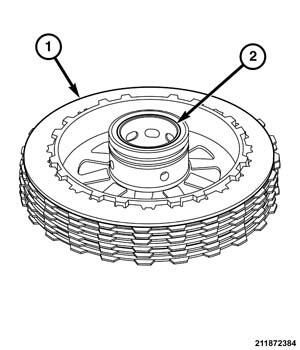

  4. Install the clutch pack frictions and steels (1).
    GC0154565Courtesy of CHRYSLER GROUP, LLC

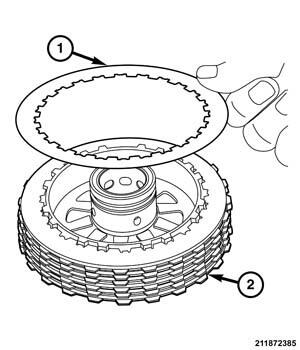

  5. Install the wave washer (1) last.
    GC0154403Courtesy of CHRYSLER GROUP, LLC

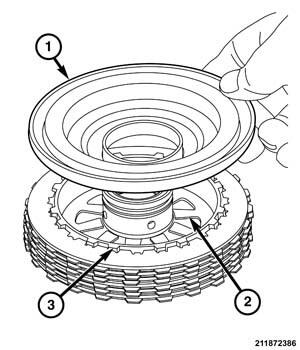

  6. Install the E-clutch piston (1) onto the hub.
    GC0154612Courtesy of CHRYSLER GROUP, LLC

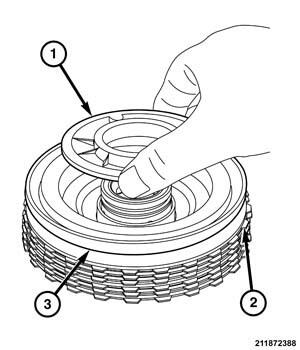

  7. Install the E-clutch piston support (1).
    GC0154596Courtesy of CHRYSLER GROUP, LLC

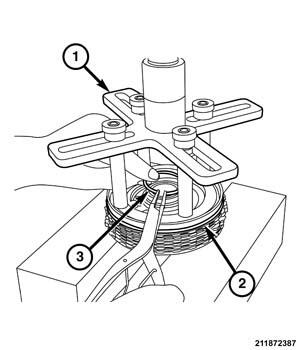

  8. Place the E-clutch in a suitable arbor press.
  9. Using Pressing Tool 8901A (special tool #8901A, Pressing Tool) compress the E-clutch enough to install the snap ring.
GC0154432Courtesy of CHRYSLER GROUP, LLC
