Clutch D Disassembly

WARNING: This page is about a different variant/trim than selected.
GC0154527Courtesy of CHRYSLER GROUP, LLC

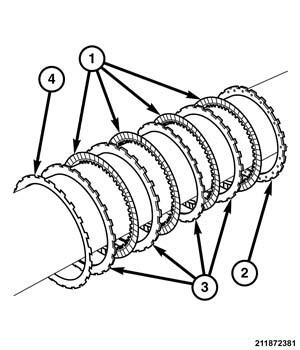

1. Friction plate
2. Backing plate
3. Backing plate
4. Wave plate

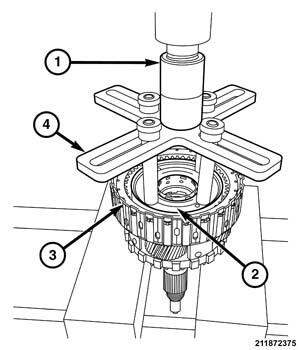

  1. Place the D-clutch (3) in a suitable arbor press (1).
  2. Using (special tool #8901A, Pressing Tool) (4) to compress the oil baffle (2) enough the clear the locking tabs.
    GC0142983Courtesy of CHRYSLER GROUP, LLC

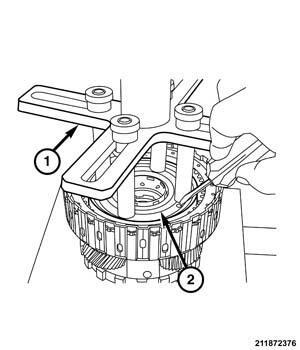

    GC0154654Courtesy of CHRYSLER GROUP, LLC

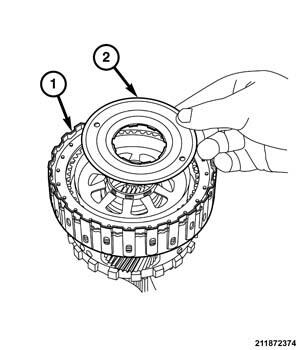

  3. Rotate the oil baffle (2) slightly until the tabs on the hub are clear of the baffle.
    GC0154466Courtesy of CHRYSLER GROUP, LLC

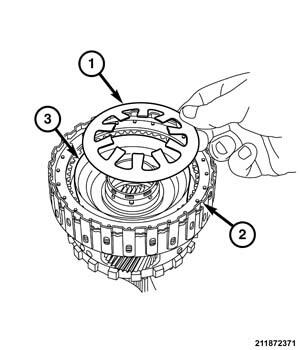

  4. Remove the oil baffle (2).
    GC0154550Courtesy of CHRYSLER GROUP, LLC

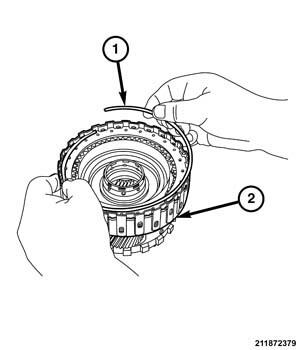

  5. Remove the belleville spring (1).
    GC0154435Courtesy of CHRYSLER GROUP, LLC

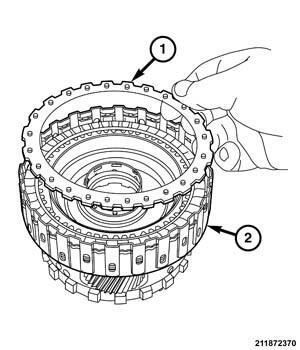

  6. Remove the selective snap ring (1).
    GC0154416Courtesy of CHRYSLER GROUP, LLC
  7. Remove the D-Clutch backing plate (1).
    GC0154436Courtesy of CHRYSLER GROUP, LLC

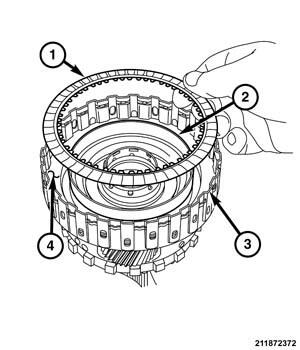

  8. Remove the D-Clutch (3) frictions and steels (1), paying attention to the orientation.
    GC0154609Courtesy of CHRYSLER GROUP, LLC

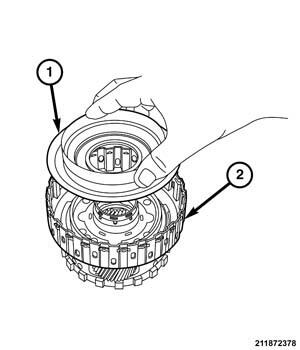

  9. Remove the D-Clutch (2) piston (1).
    GC0154424Courtesy of CHRYSLER GROUP, LLC

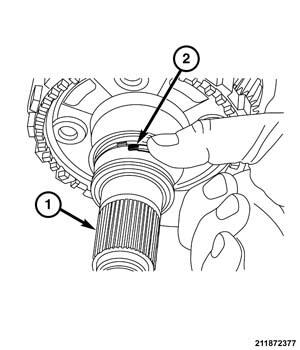

  10. Remove the D-Clutch carrier seal rings (2).
GC0154415Courtesy of CHRYSLER GROUP, LLC
