Clutch C Disassembly

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

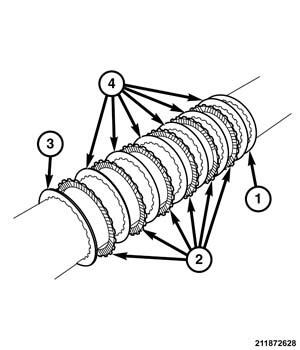

1. Wave plate

2. Friction plate

3. Backing plate

4. Steel plate

Courtesy of CHRYSLER GROUP, LLC

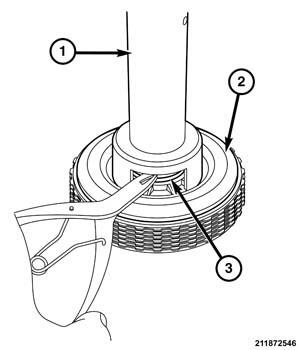

Place the C-clutch (2) in a suitable press.
Using special tool 8680 (1) compress the C-clutch (2) enough to remove the snap ring (3).
Remove the snap ring (3).

Courtesy of CHRYSLER GROUP, LLC

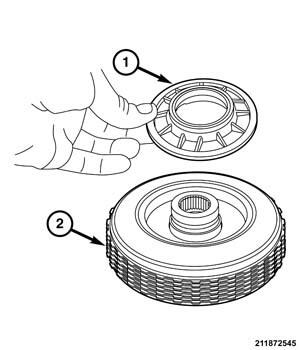

Remove the C-clutch retainer (1).

Courtesy of CHRYSLER GROUP, LLC

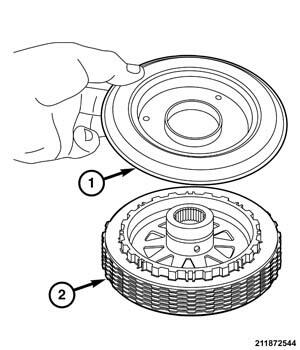

Remove the C-clutch piston (1).

Courtesy of CHRYSLER GROUP, LLC

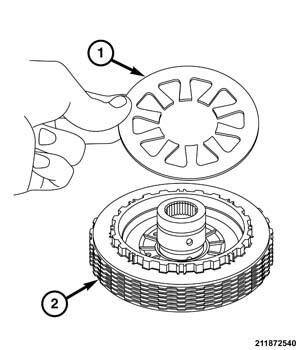

Remove the belleville spring (1).

Courtesy of CHRYSLER GROUP, LLC

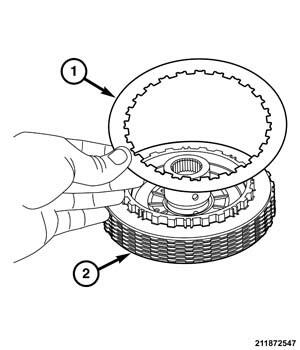

Remove the wave plate (1).

Courtesy of CHRYSLER GROUP, LLC

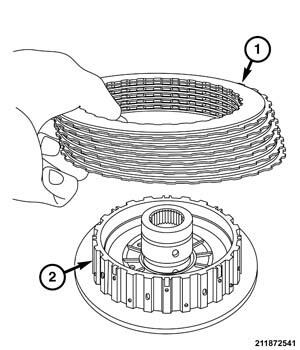

Remove the 6 friction and steel plates (1).

Courtesy of CHRYSLER GROUP, LLC

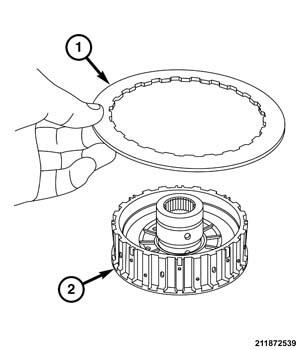

Remove the backing plate (1).

Courtesy of CHRYSLER GROUP, LLC

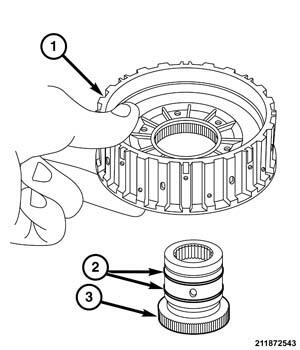

Separate the clutch shaft (3) from the clutch hub (1).
Remove two O-rings from the C-clutch shaft (2).
