Clutch B Disassembly

WARNING: This page is about a different variant/trim than selected.
GC0154668Courtesy of CHRYSLER GROUP, LLC
1. Wave plate
2. Steel plate
3. Backing plate
4. Friction plate
GC0152139Courtesy of CHRYSLER GROUP, LLC

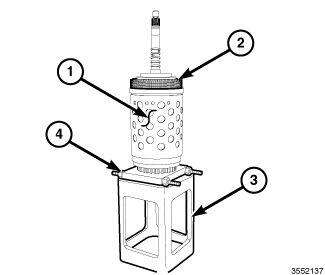

  1. Position the input/output shaft and the P4 annulus drum assembly (1) on (special tool #8925-3, Assembly, Press Fixture) and (special tool #1130, Splitter, Bearing/Gear).
    GC0142981Courtesy of CHRYSLER GROUP, LLC
    GC0141532Courtesy of CHRYSLER GROUP, LLC
    GC0154636Courtesy of CHRYSLER GROUP, LLC
  2. Remove the selectable shim (1).
    GC0154345Courtesy of CHRYSLER GROUP, LLC
  3. Remove the P1 (1) annulus from the assembly.
    GC0154594Courtesy of CHRYSLER GROUP, LLC
  4. Remove the B-clutch wave plate (1).
    GC0154430Courtesy of CHRYSLER GROUP, LLC
  5. Remove the friction and steel plates (2).
    GC0154377Courtesy of CHRYSLER GROUP, LLC
  6. Remove the backing plate (1) from the assembly (2).
