Clutch B Assembly

WARNING: This page is about a different variant/trim than selected.
NOTE:

If clutch discs are being replaced, soak in 8HP trans fluid before assembly.

  1. Position the input/output and the P4 annulus drum assembly on (special tool #8925-3, Assembly, Press Fixture) and (special tool #1130, Splitter, Bearing/Gear).
    GC0142981Courtesy of CHRYSLER GROUP, LLC
    GC0141532Courtesy of CHRYSLER GROUP, LLC
    GC0154377Courtesy of CHRYSLER GROUP, LLC

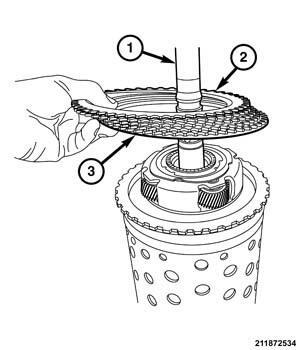

  2. Install the backing plate (1) onto the input/output shaft.
    GC0154430Courtesy of CHRYSLER GROUP, LLC

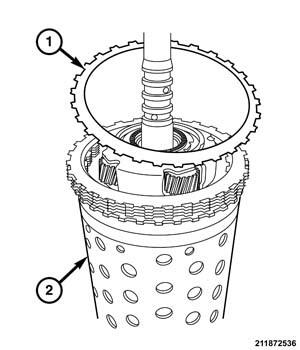

  3. Install the friction and steel plates (2).
    GC0154594Courtesy of CHRYSLER GROUP, LLC

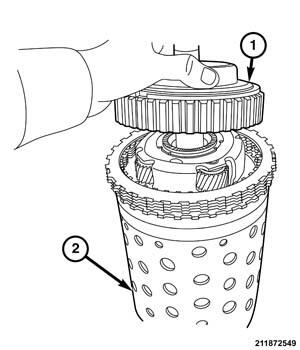

  4. Install the B-clutch wave plate (1).
    GC0154345Courtesy of CHRYSLER GROUP, LLC

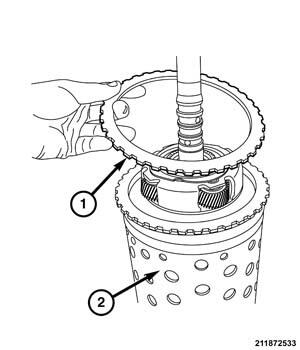

  5. Install the P1 annulus onto the input/output shaft (1).
    GC0154636Courtesy of CHRYSLER GROUP, LLC

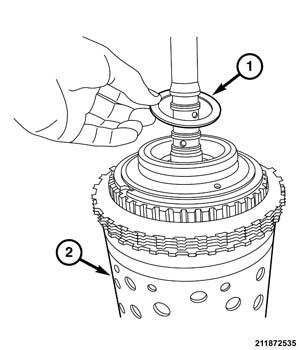

  6. Install the correct selectable shim (1) onto the P1 annulus.
GC0154668Courtesy of CHRYSLER GROUP, LLC

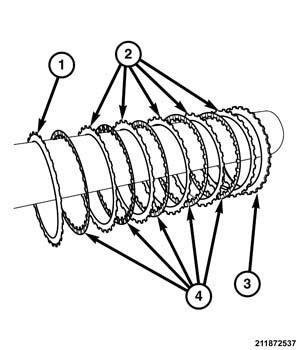

1. Wave plate
2. Steel plate
3. Backing plate
4. Friction plate
