Clutch, A: Disassembly

WARNING: This page is about a different variant/trim than selected.

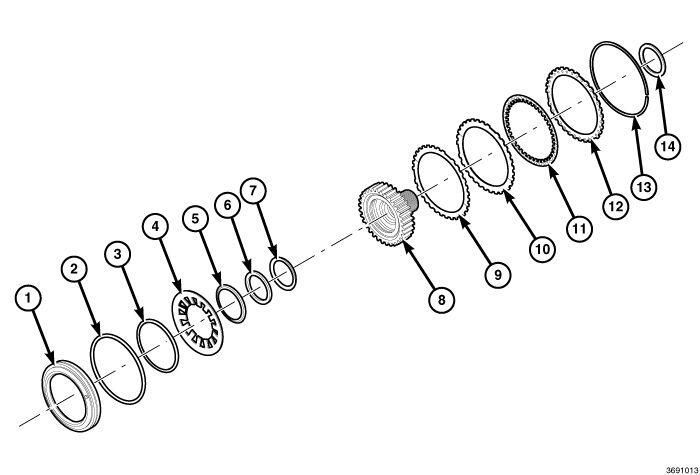

Courtesy of CHRYSLER GROUP, LLC

1 - A CLUTCH PISTON

2 - LIP SEAL

3 - LIP SEAL

4 - RETURN SPRING

5 - RING

6 - BEARING

7 - WASHER

8 - SUN GEAR

9 - WAVE SPRING

10 - SEPARATOR PLATE

11 - FRICTION PLATES

12 - END PLATE

13 - SNAP RING

14 - SELECTABLE SHIM

Remove the oil pump from the transmission case. Refer to PUMP, TRANSMISSION OIL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Apply air pressure slowly, oil may spray when B-piston releases from the assembly.
With one hand above B-piston (1), carefully apply air pressure into the hole directly above the B-piston alignment tab (3) to remove B-piston (2) from the assembly.

Courtesy of CHRYSLER GROUP, LLC
Remove the outer ring (1) (inside B-piston).
Remove the snap ring (2).
Remove the clutches and spacers (4).
Remove the hub (3).

Courtesy of CHRYSLER GROUP, LLC
Position the oil pump housing assembly (4) in a suitable press.
Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston retainer to remove tension on the split retaining ring (2), and remove the two halves of the retaining ring (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the piston retainer and plate.
