Cable, Manual Park Release: Removal: Lower

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0158322Courtesy of CHRYSLER GROUP, LLC
  2. Unclip the Manual Park Release (MPR) cable from the lever.
  3. Release the locking tab (1) on the MPR cable and remove the cable from the bracket (3).
  4. Release the grommet from the body, and push the cable inward.
  5. Lower the vehicle.
    GC0152299Courtesy of CHRYSLER GROUP, LLC

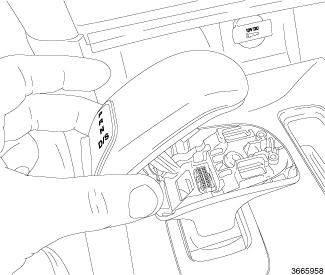

  6. Using a trim stick, remove the shifter knob.
    GC0152300Courtesy of CHRYSLER GROUP, LLC

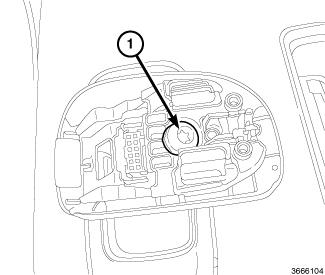

  7. Remove the screw (1) from the shifter, and pull the shifter handle off.
  8. Remove the shifter bezel.
  9. Remove the center console left side bezel.
  10. Carefully pull the MPR cable through the body.
