Nose, Inlet: Installation

WARNING: This page is about a different variant/trim than selected.
GC0173361Courtesy of CHRYSLER GROUP, LLC

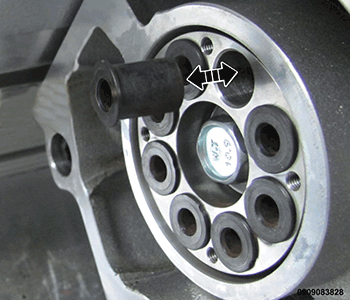

  1. Press the NEW  supercharger to inlet nose bushings into the coupler bore.
    NOTE:

    It may be necessary to gently tap the bushing into the bore using a small plastic or rubber mallet.

    NOTE:

    Caution must be used to not make contact with the aluminum inlet bearing housing, or damage may occur.

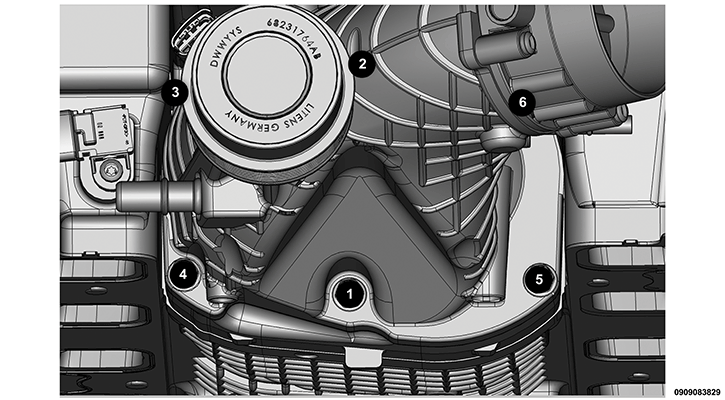

    Fig 1: Supercharger Inlet Nose Loosening/Tightening Sequence
    GC0173397Courtesy of CHRYSLER GROUP, LLC
  2. Using a NEW  inlet nose gasket, install the inlet nose to the supercharger.
  3. Using the sequence shown in the illustration, tighten the NEW  inlet nose retaining screws to 35 N.m (26 ft. lbs.).
    GC0173359Courtesy of CHRYSLER GROUP, LLC

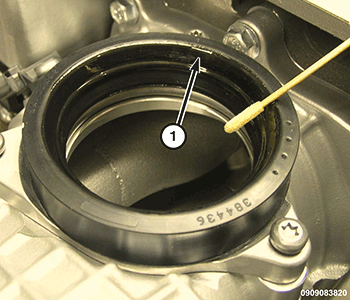

  4. Install the bypass adapter onto the inlet nose, using a NEW  gasket if necessary.
  5. Tighten the bypass adapter retaining screws to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  6. Lubricate the bypass adapter cuff (1) using clean engine oil.
  7. Install the three NEW  lid tower O-rings to the supercharger.
  8. Lubricate the TMAP sensor O-ring seal with clean engine oil.
  9. Install the TMAP sensor into the inlet nose and tighten the NEW  fastener to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0173394Courtesy of CHRYSLER GROUP, LLC

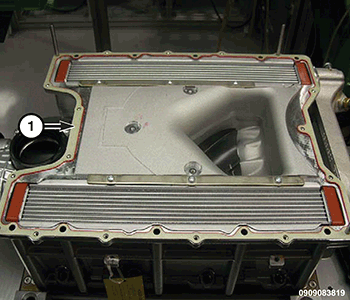

  10. Install a NEW  lid gasket (1) onto the supercharger.
    GC0173393Courtesy of CHRYSLER GROUP, LLC

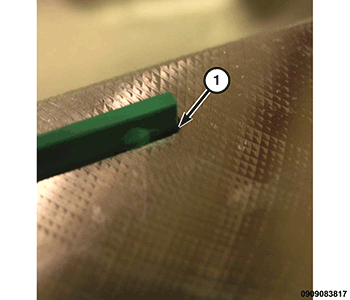

  11. Verify that the six cooler retention seals (1) are assembled in the lid.
  12. Align the lid onto the supercharger.
  13. Press the lid, above the bypass throttle body, into the cuff. The bypass throttle body will be partially seated in the cuff.
    GC0173367Courtesy of CHRYSLER GROUP, LLC

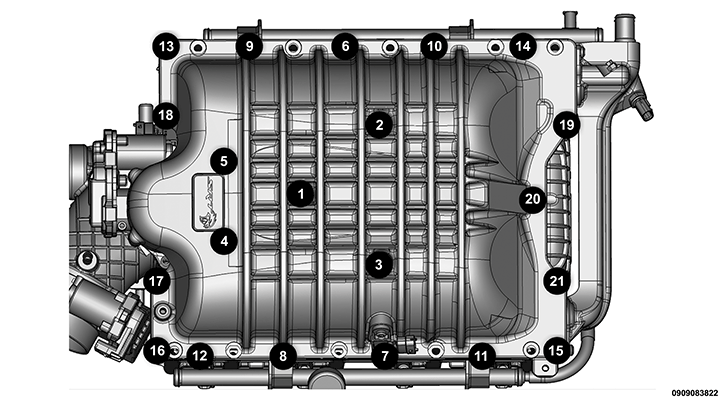

  14. Using the sequence shown in the illustration, tighten the retaining screws to 10 N.m (7 ft. lbs.).
  15. Using the sequence shown in the illustration, torque the five long lid fasteners (1-5) again, to 10 N.m (7 ft. lbs.).
  16. Using a NEW  seal, install the throttle body onto the inlet nose and torque the four retaining screws to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  17. Install the supercharger. Refer to SUPERCHARGER, INSTALLATION .
