Manifold, Exhaust: Description

WARNING: This page is about a different variant/trim than selected.

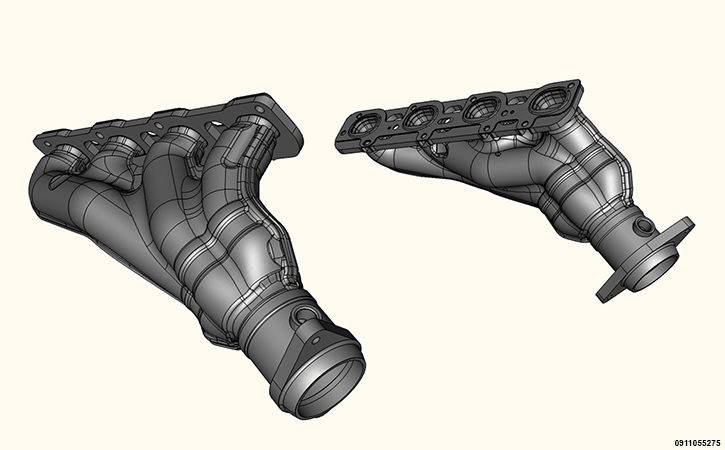

GC0170370Courtesy of CHRYSLER GROUP, LLC

The exhaust manifolds are tube in shell air gap design to maximize durability and performance. The exhaust manifolds are made of stainless steel stamped shells and stainless steel tubes with a powdered metal outlet. A layered graphite over perforated steel manifold gasket is used to provide sealing to the cylinder head.
