Solenoid, Variable Valve Timing (VVTS), Exhaust: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate the Variable Valve Timing Solenoid (VVTS) rubber O-ring seal with clean engine oil.

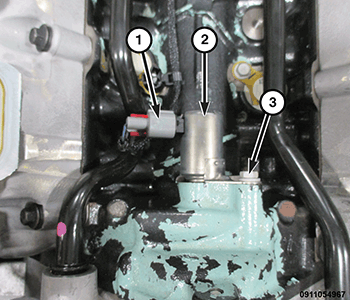

- Install the VVTS (2) and rotate into position.
- Install the VVTS retaining bolt (3) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Connect VVTS electrical connector (1).
- Install the supercharger. Refer to SUPERCHARGER, INSTALLATION .
