Cooler, Oil: Description
WARNING: This page is about a different variant/trim than selected.

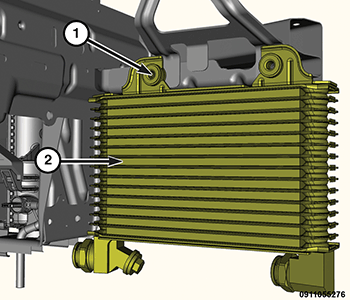

The engine oil cooler (2) is engineered for maximum cooling efficiency with no restriction in oil flow. The oil cooler is mounted (1) behind the front fascia, on the right side of the vehicle.
The engine oil cooler uses the external air flow across cooling fins, to maintain a consistent engine oil temperature.
NOTE:
The engine oil cooler contains an additional drain plug that must be removed when changing engine oil.
