Retainer, Crankshaft Rear Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:

The crankshaft rear oil seal is integral to the crankshaft rear oil seal retainer and must be replaced as an assembly.

NOTE:

The crankshaft rear oil seal retainer can not be reused after removal.

  1. Thoroughly clean all gasket residue from the engine block.
  2. Position the gasket onto the new crankshaft rear oil seal retainer.
  3. Position the crankshaft rear oil seal retainer onto the engine block.

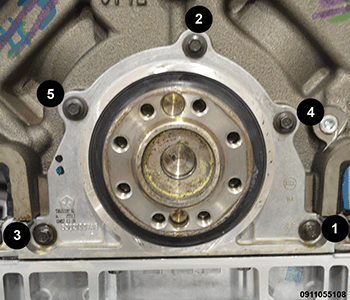

    GC0170149Courtesy of CHRYSLER GROUP, LLC
  4. Using the sequence shown in the illustration, install the crankshaft rear oil seal retainer mounting bolts and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  5. Install the oil pan. Refer to PAN, OIL, INSTALLATION .
  6. Install the flexplate or flywheel. Refer to FLEXPLATE, INSTALLATION  .
  7. Install a NEW oil filter and fill the crankcase with the specified type and amount of engine oil. Refer to STANDARD PROCEDURE .
  8. Connect the negative battery cable.
  9. Start the engine and check for leaks.
