Cover(S), Cylinder Head: Installation: Right
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.
CAUTION:
Do not allow other components including the wire harness to rest on or against the engine cylinder head cover. Prolonged contact with other objects may wear a hole in the cylinder head cover.
NOTE:
The cylinder head cover gasket may be used again, provided no cuts, tears, or deformation have occurred.
- Clean the cylinder head cover (1) and the sealing surface of the cylinder head (2). Inspect the cylinder head cover gasket and the coil tower gaskets, replace if necessary.
- Install the cylinder head cover and hand start all fasteners.
- Using the sequence shown in the illustration in the illustration, tighten the cylinder head cover bolts to 11 N.m (97 lbs in.).
- Install the ignition coils and ignition coil wire harness. Refer to COIL, IGNITION, INSTALLATION
.

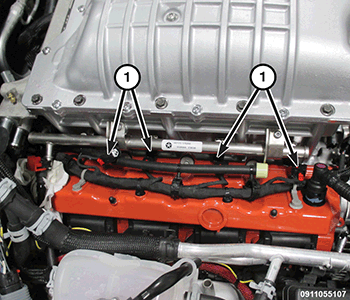

- Connect the left side fuel injector wire harness connectors (1) and fasten wire harness to cylinder head cover.
- Connect the wire harness connectors to the camshaft position sensor, oil pressure sending unit, and oil temperature sensor.
- Connect the bank one (1) and throttle outlet (2) Temperature-Manifold Absolute Pressure (TMAP) sensor wire harness connectors.
- Connect the bypass valve wire harness connector (3).

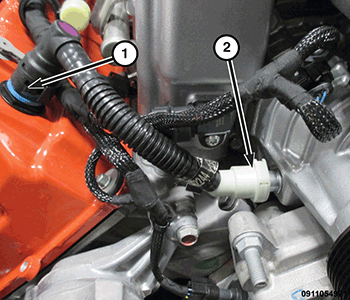

- Connect the Positive Crankcase Ventilation (PCV) hose to the right side cylinder head cover (1).

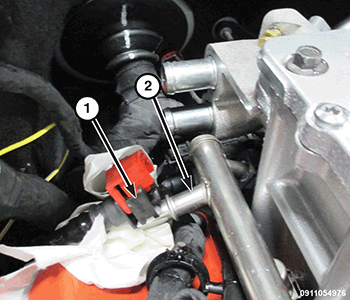

- Connect the fuel supply line (1) to the fuel rail (2). Refer to FITTING, QUICK CONNECT
.
- Install the engine covers (1).
- Connect the negative battery cable.
- Start the engine and inspect for leaks.
