Body, Air Cleaner: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.

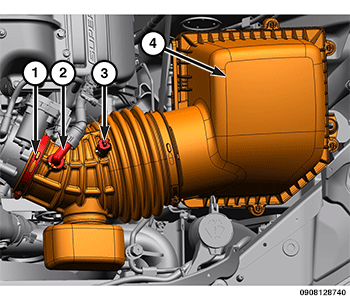

    GC0180922Courtesy of CHRYSLER GROUP, LLC
  2. Loosen the air inlet tube retaining clamp (1) at the throttle body.
  3. Disconnect the make-up air tube (2).
  4. Disconnect the Inlet Air Temperature (IAT) sensor wire harness connector (4).
  5. Lift the air cleaner housing (4) vertically.

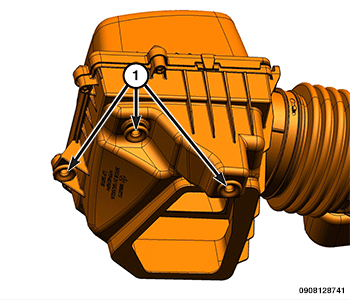

    GC0180914Courtesy of CHRYSLER GROUP, LLC
  6. There are three grommets (1) on the bottom of the air cleaner housing that secure it to the vehicle.
  7. If necessary, remove the air inlet tube clamp from the air cleaner housing to remove the air inlet tube.
