Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.

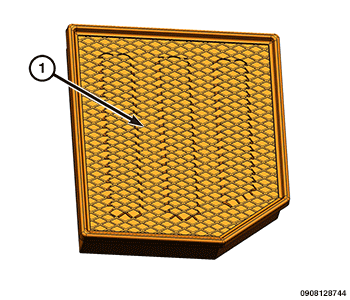

GC0180955Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (1) into the housing.
  2. Align the air cleaner housing cover locating tabs into the housing while lowering the cover into position.

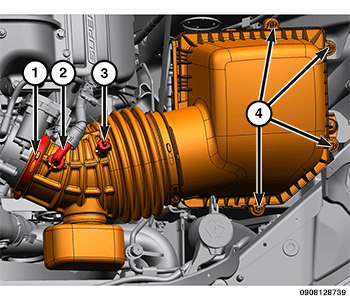

    GC0180935Courtesy of CHRYSLER GROUP, LLC
  3. Insert air cleaner inlet tube onto the throttle body and tighten the clamp to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  4. Install the air cleaner housing cover retaining screws (4) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  5. Connect the Inlet Air Temperature (IAT) sensor wire harness connector (3).
  6. Connect the make-up air hose (2).
  7. Connect the negative battery cable.
