Sensor, Oil Pressure: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Apply Mopar® Thread Sealant with PTFE to the sensor threads before installing into the engine block.

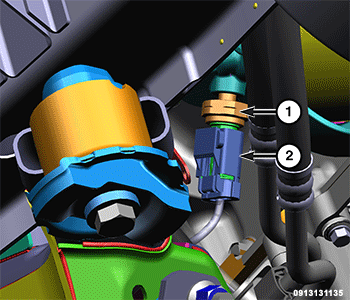

- Install the oil pressure sensor (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the oil pressure sensor wire harness connector (2).
- Remove the support and lower the vehicle.
