Spring(S), Valve: Installation

WARNING: This page is about a different variant/trim than selected.

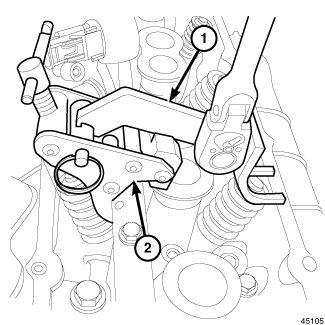

GC0095601Courtesy of CHRYSLER GROUP, LLC
NOTE:

A fulcrum assembly (1) must be rotated to the appropriate setting as marked on the tool for proper valve spring alignment.

NOTE:

The intake seal has a smaller spring seat diameter compared to the exhaust seal.

  1. Install the valve seal.
    NOTE:

    The intake spring damper has a longer free length compared to the exhaust spring damper.

  2. Install the valve spring.
  3. Using the valve spring compressor (special tool #9065C, Compressor, Valve Spring) (1, 3), compress the valve spring and install the valve spring retainer locks.
    GC0081829Courtesy of CHRYSLER GROUP, LLC
  4. Release the air charge (1) in the cylinder.
  5. Remove the valve spring compressor (special tool #9065C, Compressor, Valve Spring) (3).
    CAUTION:

    Verify that the pushrods are fully seated into the lifters and the rocker arms. Recheck after rocker arm shaft has been torqued to specification.

  6. Install the rocker arm shaft and push rods. Refer to ROCKER ARM, VALVE, INSTALLATION .
  7. Connect the negative battery cable.
