Air Cleaner Housing

WARNING: This page is about a different variant/trim than selected.
GC0146180Courtesy of CHRYSLER GROUP, LLC
  1. Loosen the clean air hose clamp (1) at the air cleaner cover and disconnect the clean air hose.
  2. Remove the make up air hose (2) at the air cleaner cover.
  3. Release the 2 spring clips (3) from the air cleaner cover.
  4. Remove the air cleaner cover from the housing assembly.
  5. Remove the air filter element from the housing assembly.

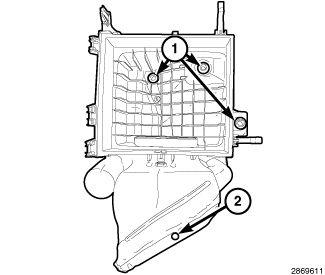

    GC0146181Courtesy of CHRYSLER GROUP, LLC
  6. Remove the push pin retainer (2) at the air cleaner housing duct.
  7. Lift and separate the air cleaner housing rubber grommets (1) from the ball studs and remove the air cleaner housing.
