Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Clean the inside of air cleaner housing before replacing the air filter element.

Install the air filter element into the housing assembly.
Install the air cleaner cover onto the housing assembly locating tabs.

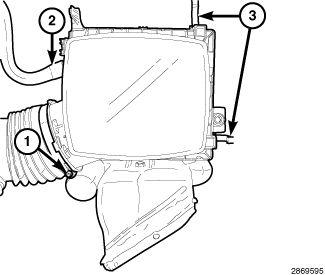

Latch the 2 spring clips (3) and lock the air cleaner cover to the housing assembly.
Connect the make up air hose (2) to the air cleaner cover.
Connect the clean air hose to the air cleaner cover and tighten clamp (1) to 5 N.m (44 in. lbs.).
