Sensor, Mode: Installation
WARNING: This page is about a different variant/trim than selected.

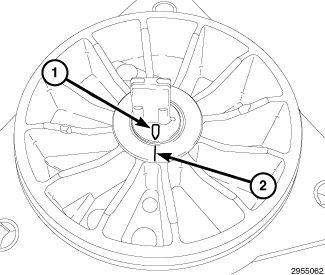

- Align arrow (1) on the encoder shaft with alignment mark (2) prior to installing the encoder.NOTE:
Before installing the encoder onto the transfer case, be certain to align the encoder shaft to the shift shaft and the dowel on the encoder to the hole in the case accordingly.
- Install the encoder onto the rear transfer case housing.
- Install the encoder screws. Tighten the screws to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the electrical wiring harness connector onto the encoder.
