Seal, Input Shaft, Mp3023: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Lubricate all seals with MOPAR® ATF+4 prior to installation.

Courtesy of CHRYSLER GROUP, LLC

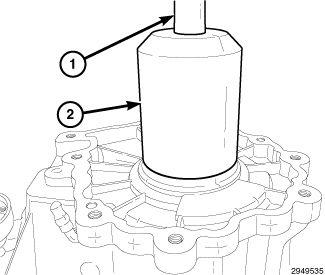

Using Installer (special tool #9672, Installer, Seal) (2) and Handle (special tool #C-4171, Driver Handle, Universal) (1), install a NEW input shaft seal.
Install the transfer case into the vehicle. Refer to INSTALLATION .
Check the transfer case fluid. Correct as necessary. Refer to SPECIFICATIONS .
