Schematics And Diagrams
WARNING: This page is about a different variant/trim than selected.

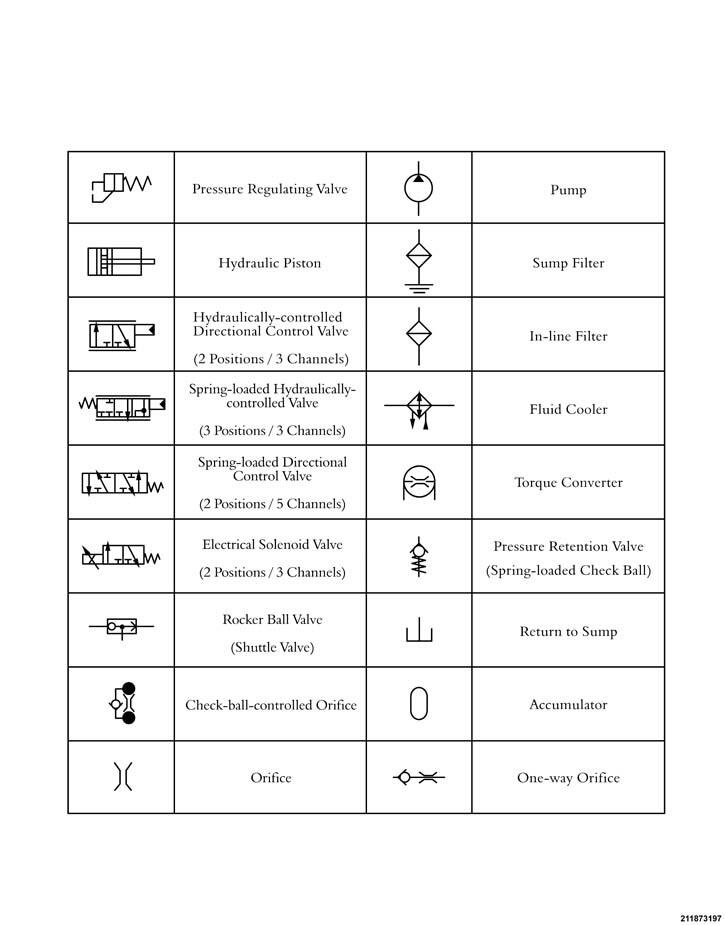

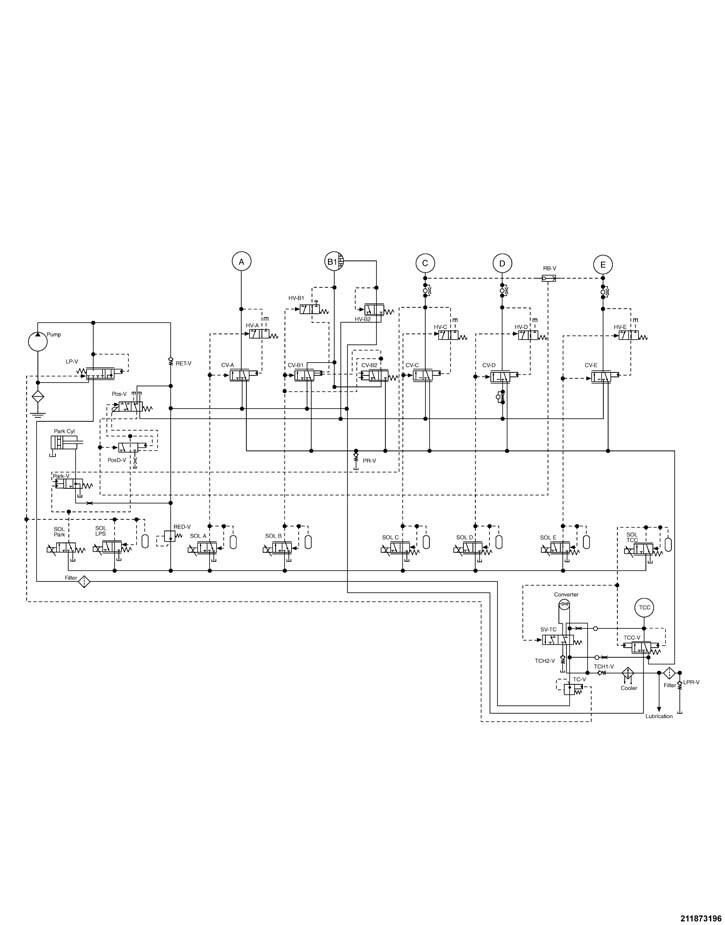

| TC-V | Torque Converter Pressure Valve | LP-V | Line Pressure Valve |
| TCC-V | Torque Converter Clutch Valve | Park-V | Park Pawl Release Valve |
| TCHx-V | Torque Converter Holding Valve | Park-Cyl | Park Pawl Release Cylinder |
| PR-V | Priming Valve | Red-V | Pressure Reducing Valve |
| SOLx | Solenoid | Pos-V | Position Valve |
| LPR-V | Lubrication Pressure Relief Valve | PosD-V | Default Position Valve (Driving Default Mode) |
| SV-TC | Switching Valve-Torque Converter | CV-x | Clutch Apply Valve |
| RET-V | Line Pressure Retention Valve | HV-x | Holding Valve |
| RB-V | Rocker Ball Valve |
