Oil Supply Line : Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using a NEW sealing washer, install the turbocharger oil supply line (3) and tighten the lower banjo bolt (2) to 35 N.m (26 ft. lbs.).
    G00615707Courtesy of CHRYSLER GROUP, LLC

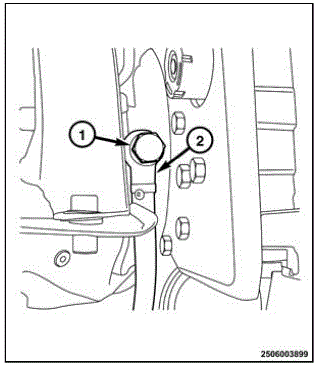

  2. Using a NEW sealing washers, install the upper banjo bolt (1) and tighten to 25 N.m (18 ft. lbs.).
    G00615706Courtesy of CHRYSLER GROUP, LLC
  3. Install the powertrain with cradle to the vehicle (Refer INSTALLATION ) .
