Cooler And Hoses, Charge Air: Installation: Hoses

WARNING: This page is about a different variant/trim than selected.

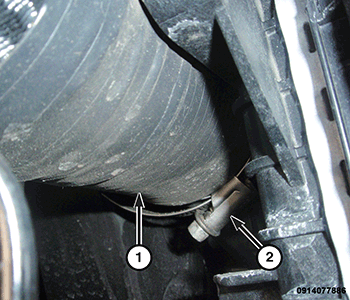

GC0172169Courtesy of CHRYSLER GROUP, LLC
  1. Install the left side Charge Air Cooler (CAC) hose (1). Tighten the clamp (2) to 11 N.m (8 ft. lbs.).

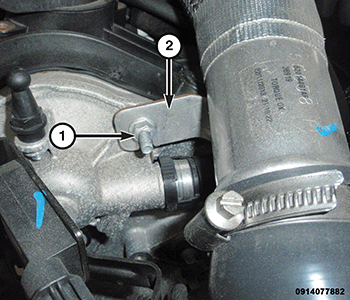

    GC0172147Courtesy of CHRYSLER GROUP, LLC
  2. Install the CAC tube support (2) onto the timing cover stud. Tighten the nut (1) to 11 N.m (8 ft. lbs.).

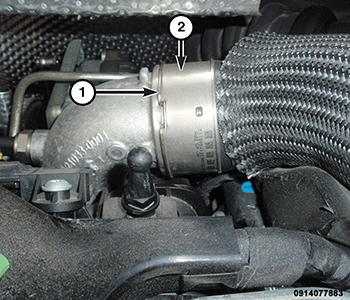

    GC0172128Courtesy of CHRYSLER GROUP, LLC
  3. Install the CAC hose (2) to the turbocharger and lock the retaining clip (1).
  4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

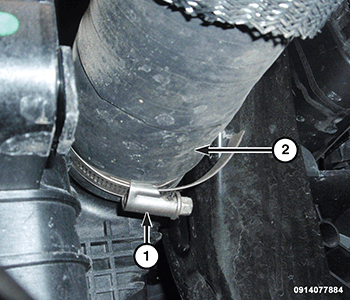

    GC0172143Courtesy of CHRYSLER GROUP, LLC
  5. Install the right CAC hose (2) and tighten the clamp (1) to 8 N.m (11 ft. lbs.).
  6. Install the front suspension skid plate. Refer to PLATE, SKID, TRANSFER CASE, INSTALLATION .
  7. Remove support and lower vehicle.

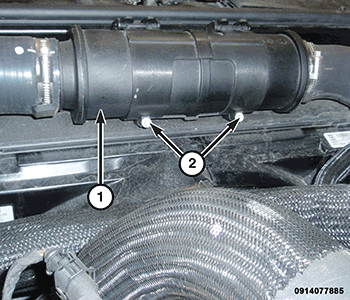

    GC0172132Courtesy of CHRYSLER GROUP, LLC
  8. Install the bolts (2) securing the resonator (1) and securely tighten.

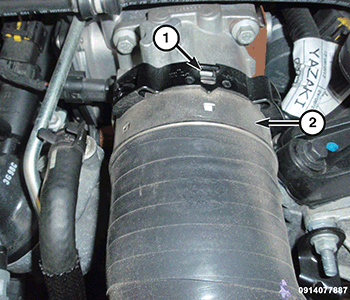

    GC0172154Courtesy of CHRYSLER GROUP, LLC
  9. Install the CAC hose (2) onto the EGR air flow control valve and engage the locking retainer.
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  10. Install the engine cover (1).
