Cooler And Hoses, Charge Air: Installation: Cooler

WARNING: This page is about a different variant/trim than selected.
GC0172142Courtesy of CHRYSLER GROUP, LLC

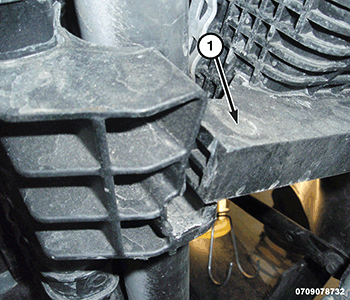

  1. Position the Charge Air Cooler (CAC) tab into (1) into the mount on radiator.
    GC0172163Courtesy of CHRYSLER GROUP, LLC
  2. Engage the left side CAC tab into radiator.
    GC0172155Courtesy of CHRYSLER GROUP, LLC
  3. Engage the right side CAC tab into radiator.
    GC0172169Courtesy of CHRYSLER GROUP, LLC
  4. Install the left side CAC hoses (1) onto the cooler and tighten the clamp (2) to 11 N.m (8 ft. lbs.).
    GC0172143Courtesy of CHRYSLER GROUP, LLC
  5. Install the right side CAC hose (2) on to the cooler and tighten the clamp (1) to 11 N.m (8 ft. lbs.).
  6. Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
