Coolant Supply Line : Installation
WARNING: This page is about a different variant/trim than selected.

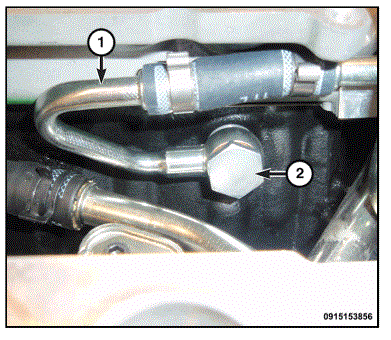

- Using a NEW sealing washers, install the coolant supply tube (1) and tighten the banjo bolt (2) to 25 N.m (18 ft. lbs.).

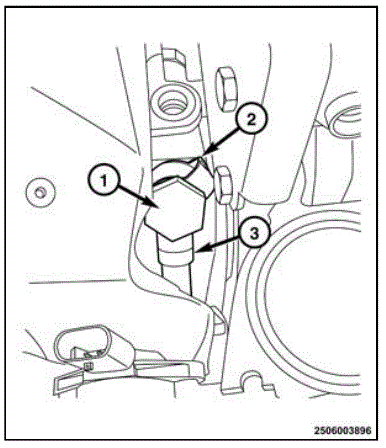

- Using a NEW sealing washers (2), install the upper banjo bolt (1) securing coolant supply tube (3) to the turbocharger and tighten the banjo bolt (1) to 35 N.m (26 ft. lbs.).
- Install the turbocharger oil supply line (Refer to OIL SUPPLY LINE ) .
- Install the intake manifold (Refer to MANIFOLD, INTAKE ) .
