Insulator, Engine Mount, Right: Installation

WARNING: This page is about a different variant/trim than selected.

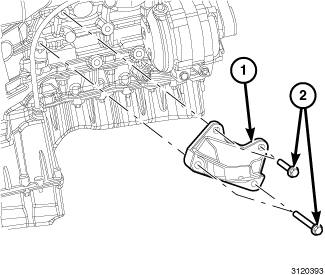

GC0146636Courtesy of CHRYSLER GROUP, LLC
  1. If necessary, Install the right engine mount bracket (1). Tighten the bolts (2) to 61 N.m (45 ft. lbs.).

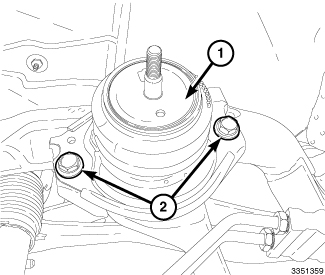

    GC0146734Courtesy of CHRYSLER GROUP, LLC
  2. Install the right engine mount (1). Tighten the bolts (2) to 61 N.m (45 ft. lbs.).

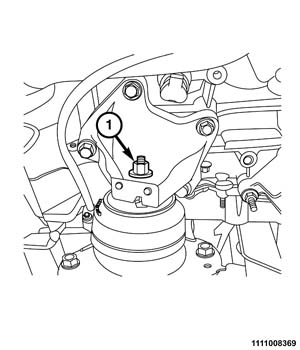

    GC0157455Courtesy of CHRYSLER GROUP, LLC
  3. Remove the support and lower the vehicle.
  4. Lower the engine into position and remove Driveline Support Fixture (special tool #8534C, Fixture, Driveline Support).
  5. Install the right and left engine mount retaining nuts (1) and tighten to 61 N.m (45 ft. lbs.).
    GC0157459Courtesy of CHRYSLER GROUP, LLC
  6. Install the right engine mount heat shield (1). Tighten the bolts (2) to 10 N.m (89 in. lbs.).
    GC0157461Courtesy of CHRYSLER GROUP, LLC
  7. Install the right engine mount heat shield (2). Tighten the bolts (1) to 10 N.m (89 in. lbs.).
  8. Install the generator. Refer to GENERATOR, INSTALLATION .
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  9. Install the engine cover (1).
  10. Connect the negative battery cable.
