Insulator, Engine Mount, Left: Installation

WARNING: This page is about a different variant/trim than selected.

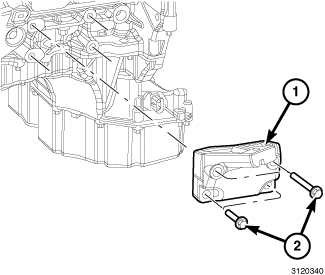

GC0146635Courtesy of CHRYSLER GROUP, LLC
  1. If necessary, Install the left engine mount bracket (1). Tighten the bolts (2) to 61 N.m (45 ft. lbs.).

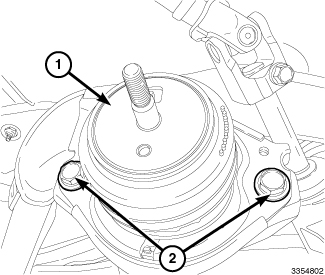

    GC0146735Courtesy of CHRYSLER GROUP, LLC
  2. Install the left engine mount (1). Tighten the bolts (2) to 61 N.m (45 ft. lbs.).
  3. Install the belly pan.
  4. Remove the support and lower the vehicle.
  5. Lower the engine into position and remove Drive Line Support Fixture (special tool #8534C, Fixture, Driveline Support).

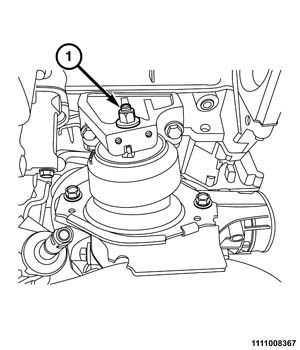

    GC0157456Courtesy of CHRYSLER GROUP, LLC
  6. Install the left and right engine mount retaining nuts (1) and tighten to 61 N.m (45 ft. lbs.).

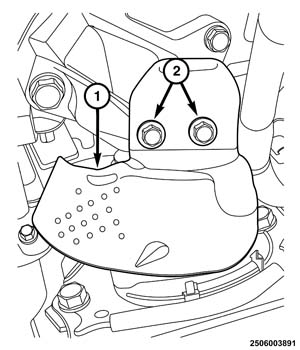

    GC0157459Courtesy of CHRYSLER GROUP, LLC
  7. Install the right engine mount heat shield (1). Tighten the bolts (2) to 10 N.m (89 in. lbs.).

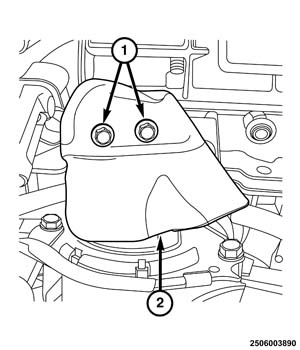

    GC0157461Courtesy of CHRYSLER GROUP, LLC
  8. Install the right engine mount heat shield (2). Tighten the bolts (1) to 10 N.m (89 in. lbs.).
  9. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  10. Install the engine cover (1).
  11. Connect the negative battery cable.
