Piston Ring

WARNING: This page is about a different variant/trim than selected.

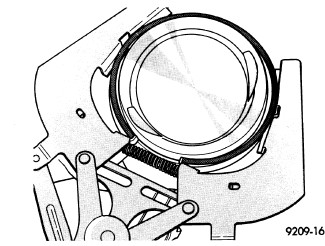

GC0095671Courtesy of CHRYSLER GROUP, LLC
  1. The ID mark on the face of the top and second piston rings must point toward the piston crown.
  2. Using a suitable ring expander, remove the top and second piston rings.
  3. Remove the upper oil ring side rail, lower oil ring side rail and then the oil expander from the piston.
  4. Carefully clean carbon from the piston crowns, skirts and ring grooves ensuring the 4 oil holes in the oil control ring groove are clear.
  5. Repeat this procedure for the remaining pistons and connecting rod assemblies.
