Pump, Vacuum: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean all gasket sealing surfaces.
- Install NEW

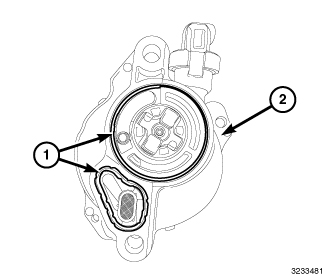

O-ring seals (1) onto the vacuum pump (2).
- Position the driver on rear of pump and install the vacuum pump (2). Tighten the bolts (1) to 30 N.m (22 ft. lbs.).
- Install the vacuum line (1) onto the vacuum pump.
- Remove the plug and install the fuel quantity solenoid. Refer to SOLENOID, FUEL QUANTITY, INSTALLATION
.
- Install a NEW
right fuel tube (3). Tighten the union nuts (2, 4):
- Tighten the union nut (4) to 5 N.m (44 in. lbs.) plus an additional 75 degrees turn.
- Tighten the union nut (2) to 11 N.m (8 ft. lbs.) plus an additional 75 degrees turn.
- Install the high pressure fuel tube support bracket nut (1) and tighten to 11 N.m (8 ft. lbs.).
- Install the high pressure pump blocker shield with insulator. Tighten the bolts to 25 N.m (18 ft. lbs.).
- Install the engine cover (1).
- Connect the negative battery cable.
- Start the engine and inspect for leaks.
