Engine Block: Description
WARNING: This page is about a different variant/trim than selected.

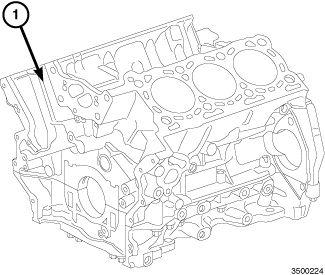

The 3.0L engine utilizes a cast Iron cylinder block (1) with a bedplate design. The cylinder angle is 60 degrees V block design. The cylinder block has increased rigidity that reduces structural flexing, plus a fractured connecting rod cap design that can not distort connecting rod cap fit.
Cylinders are numbered front to back, beginning with the right bank. The right bank cylinders are numbered 1, 2, 3. The left bank cylinders 4, 5, 6. The injection order of the engine is 1-4-2-5-3-6.
